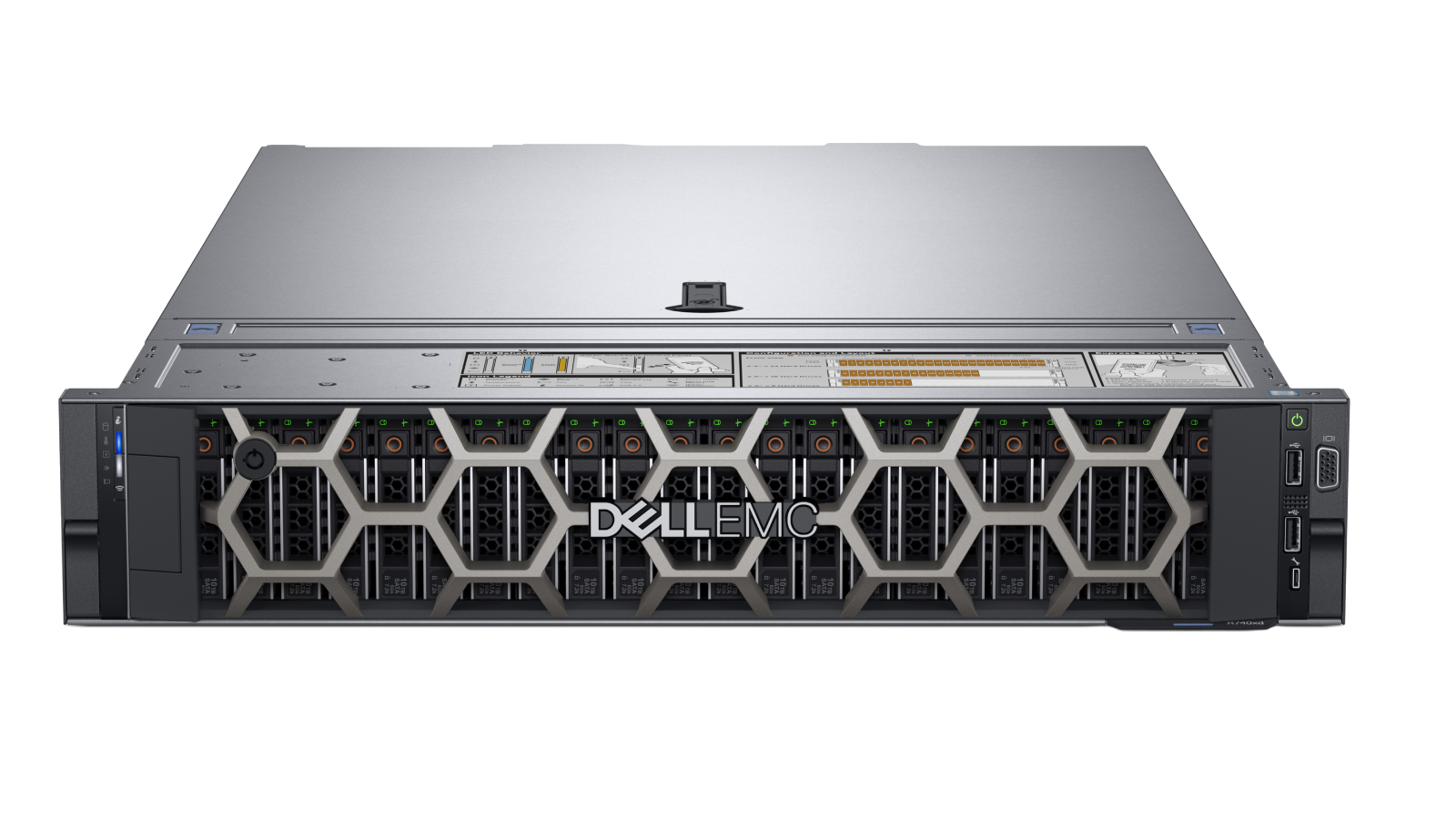

Dell PowerEdge R740

Processor:

• CPU: Supports up to 2 x Intel® Xeon® Scalable processors (with up to 28 cores per processor)

• Processor Options: Intel® Xeon® Platinum, Gold, Silver, and Bronze (Scalable family)

• Socket Support: 2 x LGA 3647 sockets (up to 56 cores total)

• Processor Speed: Up to 3.80 GHz, depending on the model

Memory:

• Memory Capacity: Supports up to 3 TB of DDR4 memory (with 24 DIMM slots)

• Memory Types: RDIMM, LRDIMM, NVDIMM

• Memory Speed: Up to 2933 MT/s (depending on the processor selected)

• Memory Configuration: Support for memory mirroring, rank sparing, and other advanced configurations

• Memory Channels: 6 channels per processor (12 total)

Storage:

• Drive Bays:

  • Up to 8 x 2.5″ or 4 x 3.5″ hot-pluggable drives

  • Optional 12 x 3.5″ or 16 x 2.5″ front drive bays (depending on configuration)

• Storage Types:

  • HDD (Hard Disk Drive)

  • SSD (Solid State Drive)

  • NVMe (Non-Volatile Memory Express)

• RAID Support: PERC (PowerEdge RAID Controller) options for RAID 0, 1, 5, 6, 10, 50, 60

• Maximum Storage Capacity: Varies based on the drive types and configurations; supports up to 64 TB or more with 3.5″ HDDs

Networking:

• Integrated Network Adapters:

  • Dual-port 1 GbE NIC

  • Optional 10 GbE, 25 GbE, or 40 GbE network cards
